Among the different approaches available to foundries that create intricate integrated circuitry on semiconductor chips, etching with potassium hydroxide (KOH) is frequently preferred for the error-free mass-production that it allows.
The improvement in precision that the KOH etching process brings to semiconductor fabrication is attributable in large part to the use of deionized water. When employed with high alkalinity in excess of pH 12, this process can be thermally adjusted for precise degrees of etching.
How does the use of potassium hydroxide improve the semiconductor etching process?
While dry semiconductor etching processes do exist, they tend to present challenges in process control. Semiconductor wafers etched in this way tend to suffer from quality control issues. Dry etching processes can be difficult to build and run, as well — toxic and explosive chemicals often seen as byproducts, after all.
Greater precision
Etching with potassium hydroxide offers greater precision, and lends itself to improved control, as well.

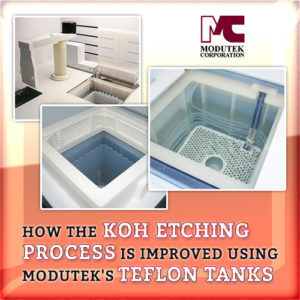

The fluids employed in the KOH etching process are stored in tanks built into the equipment. One of the most cost-effective and meaningful choices to make in KOH etching processes: to place Teflon tanks within the etching equipment in order to hold the fluids employed. Teflon tanks can make the KOH etching process safer than other options available.
It is possible to structure the KOH etching process in a way to easily create repeat manufacturing projects, as well. When such projects come in from different clients, fabrication units can focus their strengths on setting up the equipment, worrying as little as possible about safety or reliability.
Opting for fewer contaminants and greater cleanliness
Customization is one of the greatest most significant improvements that Modutek brings to the KOH etching equipment business — one where generic, mass-produced Teflon tanks are the norm. Modutek’s Teflon tanks are especially capable of bringing impurity quantities to levels that are impressively low. The result is greater reliability and consistency over an extended period of time.
Greater control
Modutek’s Teflon tanks come with highly customizable temperature settings. Temperature control is achieved either through in-line heating and cooling equipment installed, or through immersion in liquid tanks. It is precisely varied anywhere between 30°C to 100°C. Temperature changes dialed up our achieved at a fast rate of 2°C a minute, on average (although tank size does affect response rates).
Modutek brings customization to the table
Modutek designs Teflon tanks for the specific needs of each client installation. Whether a fabrication plant requires temperature controlled recirculating baths for their KOH etching processes or temperature controlled static baths, Modutek’s Teflon tanks deliver both freedom from water loss and freedom from concentration deficiency.
From dual heating Teflon tanks for fast and consistent water-based etching, to the installation of drains and valves that enable rapid cleanup, high-tech remote data interfaces, controllers and timers, Modutek’s clients have their choice of every advance in KOH etching.
