Optimizing the KOH Etching Process for Superior Results

Share

Optimizing the KOH Etching Process for Superior ResultsAchieving precise and repeatable results in KOH etching is essential for success in advanced research and high-volume semiconductor manufacturing. Whether developing next-generation materials in a lab or improving production efficiency, challenges such as controlling etch rates and preventing contamination significantly affect outcomes.

KOH etching, a fundamental anisotropic process, selectively removes silicon along crystallographic planes to create the microstructures essential for semiconductor devices. However, success in KOH etching requires managing critical variables like temperature, solution concentration, and filtration systems. Issues like inconsistent etch rates or contamination can hinder research outcomes and reduce manufacturing efficiency.

Modutek provides advanced wet processing equipment designed to address these challenges. With a focus on precision, reliability, and tailored solutions, Modutek equips organizations to achieve superior results, whether in the lab or on the production floor.

Key Parameters to Enhance KOH Etching Efficiency

High-Temperature Processing (Up to 140°C)

Modutek’s wet process equipment breaks conventional barriers by enabling KOH etching at temperatures as high as 140°C—well above the industry standard of 70°C. This expanded range delivers critical advantages:

  • Faster processing times for high-throughput production.
  • Improved flexibility for experimental research requiring precise parameter adjustments.
  • Increased consistency, even under demanding process conditions.

The ability to operate at higher temperatures allows researchers and manufacturers to balance speed and precision, optimizing results across various applications.

Integration of Megasonic Energy

Modutek offers megasonic energy as an optional feature to enhance the KOH etching process. This advanced technology enables:

  • Superior uniformity in etch rates across substrates.
  • Reduced particle contamination, minimizing defects in high-precision applications.
  • Enhanced process consistency, critical for both advanced research and production reliability.

This feature sets Modutek apart from conventional systems, offering an additional layer of precision for etching processes.

Solution Monitoring and Control

Maintaining optimum KOH solution conditions is essential for consistent results. Modutek’s control systems provide:

  • Automated concentration monitoring to eliminate variability.
  • Real-time solution stability tracking for continuous process optimization.
  • Integrated adjustment capabilities, allowing operators to fine-tune parameters as needed.

Modutek ensures processes remain stable and accurate throughout each etching cycle by automating and simplifying solution management.

Substrate and Material Compatibility

The interaction between substrates and materials plays a significant role in the success of KOH etching. Modutek’s systems help technical teams optimize:

  • Substrate orientation to achieve precise etching patterns.
  • Material selection for compatibility with KOH solutions.
  • Surface preparation to minimize defects and improve overall process quality.

By addressing these critical parameters, Modutek enables organizations to maximize the efficiency, precision, and repeatability of their KOH etching processes.

Techniques for Achieving Consistent and Repeatable Results

Advanced Circulation and Filtration

Uniformity and stability are essential for achieving high-quality, repeatable results in KOH etching. Modutek’s systems incorporate advanced circulation and filtration technologies designed to provide:

  • Even Flow Distribution: Maintains consistent etch rates for high-quality results across all wafer surfaces.
  • Continuous Filtration: Removes contaminants in real time to preserve solution purity and ensure defect-free output.
  • Enhanced Stability: Reduces process variability, which is crucial for precision research and high-yield manufacturing.

These features work together to maintain consistent operational performance, even under high-demand conditions.

Real-Time Process Control Systems

Consistency in KOH etching relies on precise process control. Modutek’s equipment offers:

  • pH Level Monitoring: Real-time data to maintain consistent chemical activity throughout the process.
  • Temperature Regulation Systems: Automated controls to hold precise thermal conditions, critical for both experimental precision and production efficiency.
  • Flow Rate Optimization: Smooth and predictable solution movement for uniform etching results.

These systems allow process engineers and researchers to maintain complete control over every aspect of their process, significantly reducing variability.

Contamination Prevention

Contamination is a common obstacle in achieving consistent results, but Modutek addresses this challenge with advanced design and features:

  • Integrated Filtration Systems: Active filtration prevents the accumulation of particles that can disrupt the process.
  • Strategic Flow Design: Controls fluid movement to minimize turbulence and ensure solution integrity.
  • Cleaning Protocol Compatibility: Designs that support thorough, regular cleaning are essential for maintaining high-quality results in research and production environments.

By mitigating contamination risks, Modutek enables cleaner processes, fewer defects, and higher yields. These techniques allow organizations to achieve consistent and repeatable results for success in semiconductor research and production without compromising quality, precision, or efficiency.

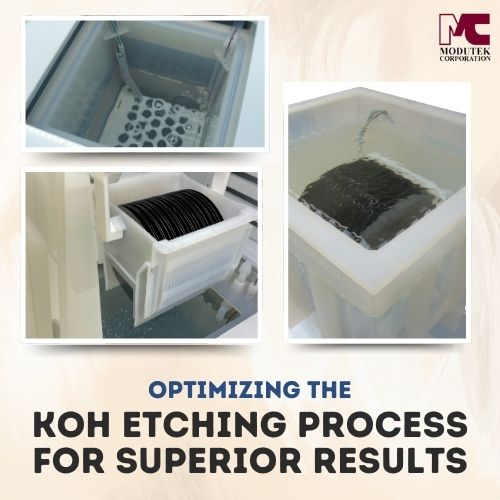

Advantages of Utilizing Teflon Tanks in KOH Etching

Superior Chemical Compatibility and Durability

Teflon tanks are critical for KOH etching due to their ability to withstand the aggressive chemical properties of KOH solutions. These advantages include:

  • Long-lasting resistance to chemical degradation, reducing the need for frequent replacements.
  • Improved equipment lifespan, cutting down overall costs associated with maintenance and downtime.
  • Consistent chemical integrity, ensuring reliable, high-quality etching results batch after batch.

Enhanced Safety with Corrosion Resistance

The non-reactive nature of Teflon enhances safety in even the most demanding KOH etching environments:

  • Minimized risk of leaks or structural failure, protecting operators and sensitive lab or production environments.
  • Corrosion-resistant properties, ensuring tank performance remains uncompromised over time.
  • Reduced exposure hazards, supporting compliance with industry safety standards.

Reliable Process Consistency and Yield Improvement

Teflon material directly contributes to superior etching precision and efficiency by:

  • Maintaining solution purity and preventing contamination from tank materials.
  • Enabling uniform etching rates is vital for achieving consistent results across multiple wafers.
  • Improving process repeatability, enhancing yield in production environments, and ensuring reliable experimental data in research applications.

Teflon tanks are indispensable for achieving precision, consistency, and safety in KOH etching processes, whether in a research lab or a high-volume manufacturing facility. Their inherent durability and design compatibility make them a natural fit for the demanding requirements of semiconductor processing.

How Modutek Supports Superior KOH Etching Results

With over 40 years of experience in wet processing equipment, Modutek offers solutions that align with the specific needs of research facilities and production teams. This expertise is reflected across the following areas:

High-Temperature Control Systems

The capability to process at up to 140°C allows both researchers and manufacturers to achieve faster results while maintaining precision.

Circulation and Filtration Features

  • Uniform solution flow and advanced filtration systems deliver consistent results.
  • Solution purity is maintained to minimize errors across experimental and production workflows.

Customization and Integration

Modutek’s in-house engineers collaborate with clients to design systems tailored to unique requirements, ensuring seamless integration into existing facilities and workflows. Clients gain:

  • Custom configurations for niche experimental needs
  • Process-specific options for production optimization

Durable and Reliable Equipment

  • Teflon tank construction ensures resistance to harsh chemicals.
  • Corrosion-resistant materials reduce maintenance needs and extend lifespan.

With rigorous pre-delivery testing and hands-on support, Modutek delivers systems that perform reliably across various applications.

Benefits for Research and Manufacturing

For Research Labs:
Modutek’s systems provide essential tools for experimental flexibility and precision:

  • Customizable configurations to adapt to specific research needs
  • High-accuracy process control features for reproducible results
  • Data collection capabilities for detailed experimental validation

For Manufacturing Facilities:
Production environments benefit from efficiency and reliability through:

  • Consistent etching rates to meet production demands
  • Reduced downtime through durable, low-maintenance equipment
  • Enhanced process efficiency that boosts overall yield

Ultimately, Modutek’s systems deliver long-term value, helping organizations reduce operational costs through optimized chemical usage, energy efficiency, and minimized maintenance requirements.

Conclusion

Precision, consistency, and control are the cornerstones of successful KOH etching. Addressing challenges such as temperature management, solution stability, and contamination requires advanced equipment to deliver repeatable and reliable results.

With over 40 years of experience, Modutek provides tailored wet processing solutions designed to meet the specific demands of both research and production environments. By integrating high-temperature control, advanced circulation and filtration systems, and durable Teflon tank construction, Modutek equips organizations with the tools needed to achieve superior results in semiconductor fabrication.

Modutek’s commitment to innovation and customer collaboration ensures that each solution is engineered for reliability, safety, and efficiency. Whether optimizing experimental processes in the lab or scaling production for high-volume manufacturing, Modutek’s expertise can help you push the boundaries of performance.

Ready to elevate the effectiveness of your KOH etching processes? Contact Modutek for a free consultation to explore custom solutions designed for your unique requirements and start achieving precision and operational excellence.
