Silicon Wafer Cleaning: Removing Contaminants to Improve Yields

Share

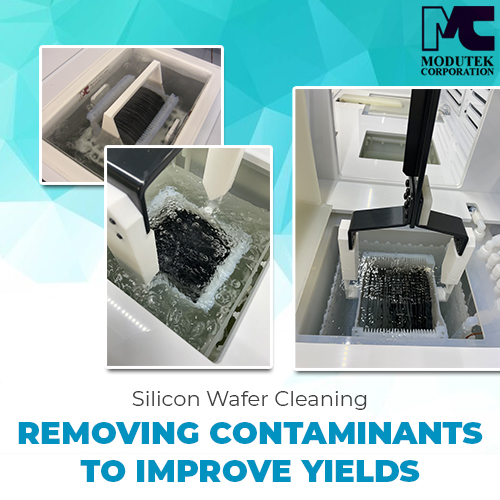

Silicon Wafer Cleaning Removing Contaminants to Improve Yields

Silicon Wafer Cleaning Removing Contaminants to Improve YieldsEditor’s Note: This article was originally published in April 2016 and has been updated with new information and re-posted in February 2024.

In the intricate world of semiconductor manufacturing, the cleanliness of silicon wafers is not just a requirement; it’s a critical success factor. Each wafer must undergo many processing steps requiring rigorous cleaning to ensure the final microelectronic components function flawlessly. This article discusses the crucial role of the wafer cleaning process in semiconductor manufacturing and equipment and systems that can improve the results. This process lies at the heart of achieving high-quality, defect-free semiconductor devices.

The approach Modutek provides for wafer cleaning is not just about employing standard procedures; it’s about innovation and customization. Modutek’s equipment caters to research and high-volume production environments, ensuring purity is maintained throughout the cleaning process. Using processing technologies, including RCA clean, SC1 & SC2 clean, Piranha etch clean and advanced methods like Ozone and Megasonic cleaning, Modutek can support the most demanding cleaning requirements.

As device geometries become smaller and more complex, removing submicron particles becomes crucial. Removing these minuscule but critical contaminants requires more efficient and precise cleaning processes. Modutek’s technology does not just clean; it enhances the overall manufacturing process. By decreasing defect rates, we can increase yield, providing a tangible competitive advantage in the fast-paced semiconductor sector. Modutek’s equipment is a testament to a commitment to precision and efficiency, engineered to deliver consistent and reliable results.

The Need for Effective Silicon Wafer Cleaning

In semiconductor manufacturing, the efficacy of the silicon wafer cleaning process is paramount. Contaminants, even at a microscopic scale, can drastically impede semiconductor device performance. Particles can lead to physical defects, and metallic impurities can alter electrical properties, contributing to lower yields and reliability.

The cleaning process is essential throughout semiconductor manufacturing, including the Front-End of Line (FEOL) and Back-End of Line (BEOL) stages. In FEOL, cleaning precedes critical high-temperature processes, preventing contaminants from diffusing into silicon. In BEOL, cleaning ensures metallic and other impurities don’t interfere with circuitry.

Modutek’s wafer cleaning solutions target all contaminant types, ensuring the removal of particles, organic residue, and metallic impurities. Processing technologies like RCA clean, SC1 and SC2 clean, Piranha etch clean and advanced methods like Ozone cleaning and Megasonic cleaning are part of the repertoire.

Understanding each process engineer’s unique requirements is critical. Modutek collaborates closely with engineers, offering customized cleaning solutions that integrate into specific manufacturing processes. This approach guarantees optimal cleaning effectiveness, directly enhancing semiconductor yield and reliability. By prioritizing effective wafer cleaning, Modutek aids in ensuring that semiconductor devices meet the highest standards of performance and reliability.

Megasonic Cleaning

Modutek’s implementation of Megasonic cleaning is a testament to the company’s commitment to leading-edge technology in semiconductor manufacturing. The use of Megasonic cleaning provides high-precision cleaning, reduces the need for chemicals, and enhances efficiency with integration into wet bench systems.

Megasonic cleaning utilizes high-frequency sound waves to effectively remove contaminants from wafer surfaces. This technique employs the cavitation effect, where microscopic bubbles generated by sound waves implode, dislodging particles delicately yet efficiently. This process combines precision with gentleness, which is crucial for the delicate nature of semiconductor wafers.

This technology is highly valued in semiconductor manufacturing for its ability to achieve thorough cleaning at a microscopic level. It’s particularly beneficial where minimal surface damage and maximum cleanliness are essential. Megasonic cleaning is effective and time-efficient, contributing to higher yields and quality in semiconductor device production.

Incorporated into Modutek’s wet bench systems, Megasonic cleaning aligns with the specific requirements of semiconductor manufacturing. This integration reflects Modutek’s commitment to providing innovative and efficient solutions to the industry. It resonates with the needs of process engineers who focus on enhancing yield and process efficiency in semiconductor fabrication. Megasonic cleaning exemplifies the incorporation of cutting-edge technology with practical applications aimed at meeting the rigorous standards of the semiconductor manufacturing sector.

Ozone Cleaning Process

Modutek’s implementation of the Ozone cleaning process in semiconductor wafer cleaning highlights its innovation in the industry. Ozone cleaning is an advanced patented process that can be integrated into Modutek’s wet bench systems.

Ozone cleaning employs ozone (O3) to remove organic residues from silicon wafers. This eco-friendly process breaks down organic contaminants into volatile compounds without using harsh chemicals, aligning with sustainable manufacturing practices. The ozone gas reacts with the contaminants on the wafer surface, efficiently cleaning without leaving hazardous byproducts.

The benefits of ozone cleaning in semiconductor manufacturing are significant. It effectively removes a broad spectrum of organic contaminants, and the equipment requires less space for a smaller footprint. This process is not only environmentally friendly due to the reduction in chemical waste but also cost-effective, reducing the reliance on expensive chemicals.

Modutek’s integration of this process into their wet bench systems provides a versatile and effective cleaning solution. This integration meets the evolving precision and environmental needs of process engineers in semiconductor manufacturing. Ozone cleaning underscores Modutek’s dedication to advancing wafer cleaning technologies, blending environmental responsibility with top-tier cleaning efficiency.

Customization for Specific Needs

Proficiency in semiconductor manufacturing requires customization of wafer cleaning solutions, ensuring technology manufacturers use systems tailored to their unique requirements. This focus on customization, particularly for process engineers, results in more efficient and targeted cleaning solutions.

Customizing cleaning solutions is at the core of Modutek’s approach. Modutek adapts and even develops new systems to fit the specific needs of its customers. This involves understanding the nuances of each customer’s manufacturing process, materials, and desired outcomes, leading to the creation of systems that integrate seamlessly into existing production lines.

Process engineers play a vital role in this customization. Their deep understanding of the intricacies of semiconductor manufacturing allows Modutek to focus on the specific challenges and requirements of each process. Through collaboration with these engineers, Modutek develops cleaning systems that target specific pain points, enhancing efficiency and yield while reducing waste.

This comprehensive approach leads to more efficient manufacturing processes. Tailored cleaning systems mean higher yields, lower defect rates, and superior performance of semiconductor devices. In Addition, this flexibility is crucial in an industry continuously evolving and embracing new technologies.

Modutek’s dedication to providing customized wafer cleaning solutions highlights its commitment to meeting the distinct needs of technology manufacturers and process engineers. By offering solutions designed for each client, Modutek ensures its customers have the most effective and efficient tools to address their manufacturing challenges.

Advanced Equipment and Solutions

Modutek’s advanced wafer cleaning equipment includes systems adept at various processes, including RCA clean, Piranha etch, and Megasonic cleaning. Precision and reliability are central to the design of these systems, ensuring consistent, high-quality outcomes crucial in an industry where precision is paramount.

Incorporating the latest technological innovations, Modutek’s equipment features automation to enhance process consistency and minimize human error. This automation is critical to achieving higher yields and operational efficiency. In addition, advanced monitoring and control systems in the equipment allow for real-time process adjustments, which are essential for maintaining the high cleanliness standards required in semiconductor manufacturing.

Recognizing the diverse needs of the sector, Modutek offers customizable solutions. Modutek’s equipment can be tailored to fit unique process requirements, providing flexibility and adaptability. The scalability of Modutek’s solutions ensures they are suitable for various scales of operations, from R&D to large-scale production, highlighting their ability to evolve with a manufacturer’s growing needs.

The Bottom Line

Effective wafer-cleaning processes are not just beneficial; they are essential. Modutek’s innovative solutions in this field, from their advanced Megasonic and Ozone Cleaning systems to their customizable wet bench solutions, underscore their commitment to excellence and efficiency in semiconductor manufacturing.

Modutek’s cutting-edge cleaning processes, which include advanced equipment and tailored solutions, highlight an unwavering focus on meeting the dynamic needs of the semiconductor industry. These solutions address current technological challenges and are designed with the foresight to adapt to future advancements and requirements.

For technology manufacturers and process engineers, partnering with a company like Modutek offers both high-quality equipment and a strategic advantage. Modutek’s comprehensive approach to improving wafer cleaning processes ensures that manufacturers are well-equipped to produce high-yield, high-quality semiconductor devices, a necessity in today’s rapidly advancing technological landscape. Contact Modutek for a free consultation to learn how you can enhance your manufacturing processes with innovative wafer cleaning technologies.
