Summary: Ozone Cleaning offers semiconductor manufacturers a safer, more cost-effective, and environmentally sustainable alternative to traditional Piranha processing by reducing hazardous chemicals, improving safety, and enhancing cleaning efficiency.
In semiconductor manufacturing, achieving optimal wafer cleaning is critical for high-yield production. While Piranha processing has long been the standard for removing organic residues, its high costs, safety risks, and environmental drawbacks prompt the need for innovation. Modutek’s advanced ozone cleaning process has emerged as a superior alternative, offering efficiency and safety advantages that traditional methods cannot match.
The ozone cleaning process addresses the limitations of conventional methods by providing an eco-friendly, cost-effective, and reliable solution that ensures better workplace safety and compliance with stringent industry standards. This EPA-endorsed solution maintains consistent performance across large wafer batches while significantly reducing facility infrastructure requirements.
In this technical analysis, we’ll examine:
- Quantifiable advantages of ozone vs. Piranha processing
- Real-world performance data and cost comparisons
- Implementation strategies for maximum ROI
- Safety and environmental impact analysis
- Process optimization techniques
For process engineers and professionals managing wafer-cleaning operations, these measured efficiency, safety, and cost reduction improvements demonstrate why many semiconductor manufacturers are transitioning to ozone-cleaning technology.
Understanding Piranha Processing and Its Limitations
The Traditional Approach Examined
Piranha processing has been a cornerstone of semiconductor manufacturing, serving as the primary method for removing organic contaminants and stripping photoresist from wafers. However, as manufacturing demands become more sophisticated, the limitations of this conventional approach have become increasingly apparent.
Core Limitations of Piranha Processing
- High Operational Costs
- Continuous procurement of concentrated sulfuric acid and hydrogen peroxide
- Expensive chemical storage and handling infrastructure
- Significant waste treatment and disposal expenses
- Regular equipment maintenance due to chemical aggression
- Specialized training requirements for handling hazardous materials
- Safety Hazards
- Exothermic Reactions: Extreme heat generated during chemical mixing and processing.
- Chemical Burns & Respiratory Hazards: High risk of injuries and exposure to hazardous fumes.
- Extensive PPE Requirements: Requires specialized personal protective equipment.
- Emergency Response Complexity: Complex protocols needed for emergencies.
- Chemical Interaction Risks: Potentially dangerous reactions between chemicals.
- Strict Handling Guidelines: Stringent rules for chemical storage and safe handling.
- Environmental Concerns
- High Chemical Waste: Significant waste generation due to aggressive chemicals.
- Complex Disposal: Requires specialized facilities for safe chemical disposal.
- High Water Usage: Large volumes of water are needed for chemical dilution and neutralization.
- Compliance Issues: Difficulty maintaining compliance with environmental regulations.
- Carbon Footprint: Large carbon emissions from the production and transport of chemicals.
Introducing Ozone Cleaning Technology: A Modern Solution
The Science Behind Ozone Cleaning
The ozone cleaning process leverages advanced technology to clean wafers without aggressive chemicals. By using ozone gas as a powerful oxidizing agent, this method efficiently removes organic contaminants while eliminating the risks associated with traditional methods like Piranha processing.
The process is rooted in the science of ozone-based photoresist stripping, offering a safer and more environmentally sustainable alternative. Modutek’s innovative solutions ensure precise, repeatable cleaning, delivering consistent results critical for semiconductor manufacturing.
Core Technology Components
Process Fundamentals
- Utilizes dissolved ozone for organic contamination removal
- Precise control of ozone concentration levels
- Advanced monitoring systems for both airborne and dissolved ozone
- Automated process parameter optimization
- Real-time adjustment capabilities for consistent results
Key Technical Features
Monitoring and Control Systems
- Integrated PPM monitoring for airborne ozone safety
- Dissolved ozone concentration sensors
- Automated concentration adjustment systems
- Real-time process data collection
- Advanced control algorithms for process optimization

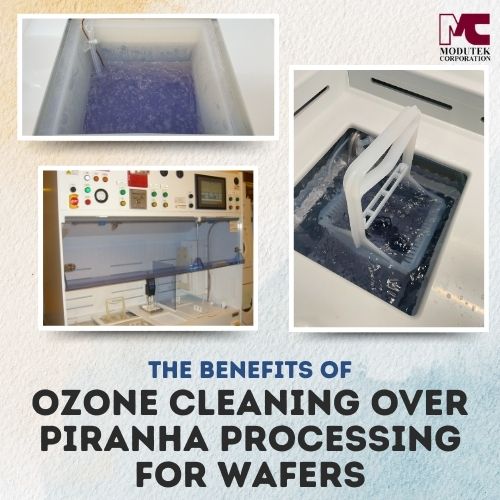

Equipment Design
- Purpose-built ozone generation systems
- Specialized dissolution technology
- Chemical-resistant materials
- Integrated safety monitoring
- Modular configuration options
Process Advantages
Technical Benefits
- Precise process control capabilities
- Consistent and repeatable results
- Simplified operation procedures
- Reduced process variability
- Enhanced cleaning effectiveness
Operational Efficiency
- Streamlined workflow integration
- Reduced processing steps
- Minimal chemical handling requirements
- Simplified maintenance procedures
- Enhanced process reliability
Safety and Environmental Features
Built-in Safety Systems
- Continuous ozone level monitoring
- Automatic shutdown capabilities
- Integrated ventilation controls
- Emergency response protocols
- Real-time safety alerts
Environmental Considerations
- Natural decomposition to oxygen
- Minimal waste generation
- Reduced environmental impact
- Lower water consumption
- Smaller carbon footprint
This technology directly addresses the core needs of process engineers, providing solutions for precise process control, equipment reliability, and safety compliance while maintaining high-performance standards in semiconductor manufacturing.
The ozone-cleaning process demonstrates Modutek’s commitment to developing advanced solutions that meet the evolving needs of semiconductor manufacturers, research centers, and universities. With over 40 years of industry experience, Modutek’s engineering team ensures that each system is tailored to meet specific manufacturing process requirements while maintaining the highest standards of safety and efficiency.
Comparing Advantages of Ozone Cleaning Over Piranha Processing
The Shift in Wafer Cleaning Technology
For decades, Piranha processing—a mixture of sulfuric acid and hydrogen peroxide at 130°C—was the standard for wafer cleaning. However, its limitations in cost, safety, and environmental impact are no longer viable as semiconductor manufacturing evolves and regulatory demands tighten. Advanced ozone cleaning technology offers a safer, more cost-effective, and sustainable alternative.
Key Advantages of Ozone Cleaning
- Cost Effectiveness: The ozone cleaning process reduces expenses associated with hazardous chemicals and simplifies waste management.
- Enhanced Safety: By eliminating dangerous chemicals, ozone cleaning improves workplace safety and reduces risks.
- Environmental Sustainability: Ozone naturally breaks down without leaving harmful residues, making it an eco-friendly option.
- Process Efficiency: This advanced process ensures repeatable, contaminant-free cleaning, which is essential for maintaining high production yields.
Quantifiable Comparison of Ozone Cleaning vs. Piranha Processing
The table below outlines the key differences between ozone cleaning and Piranha processing across critical performance, cost, technical, and environmental metrics:
| Category | Ozone Cleaning | Piranha Processing |
| Cleaning Efficiency | Photoresist removal >1 micron/min | Photoresist removal 0.5-1 micron/min |
| Operating Temperature | Room temperature (20-25°C) | High temperature (130°C) |
| Annual Chemical Costs | ~$21,000 | ~$311,000 |
| Water Consumption | ~12,600 gallons/year | ~3,290,000 gallons/year |
| Solution Lifetime | >7 days (24/7 operation) | Requires frequent replacement every 8-24 hrs depending on peroxide concentration & process temperature |
| Particle Count Post-Cleaning | <15 particles | >10,000 particles |
| Metal Compatibility | Compatible with aluminum, copper, gold, titanium etc. | Corrosion risks with sensitive metals |
| Energy Consumption | Minimal due to room temperature operation | High due to heating requirements |
| Safety Risks | Exhaust enclosure and Ozone airborne monitoring required | High chemical hazard; PPE required |
| Environmental Impact | EPA-endorsed; natural ozone decomposition | Large chemical waste and carbon footprint |
| Downtime for Maintenance | Reduced due to simpler design | Frequent maintenance is required due to chemical aggression |
Ozone cleaning technology outperforms Piranha processing across every critical metric, from efficiency and cost-effectiveness to safety and sustainability. With its proven ability to enhance manufacturing efficiency while reducing environmental impact, ozone cleaning represents the future of semiconductor wafer processing.
Addressing Key Pain Points for Semiconductor Manufacturers
Cost Management
The ozone cleaning process provides a more budget-friendly solution by reducing reliance on expensive chemicals while maintaining superior cleaning performance.
Equipment Reliability
Consistent and repeatable outcomes are essential for reliable equipment performance, and Modutek’s ozone-cleaning solutions excel in delivering this consistency.
Contamination Prevention
The ozone cleaning process ensures a contaminant-free environment without the chemical residues associated with Piranha processing.
Safety and Compliance
By replacing hazardous chemicals with ozone, this process enhances safety and aligns with stringent compliance standards in the semiconductor industry.
This comprehensive approach to addressing semiconductor manufacturing pain points demonstrates how ozone-cleaning technology provides practical solutions to critical industry challenges. Manufacturers can achieve superior results by focusing on cost management, equipment reliability, contamination prevention, and safety compliance while maintaining operational efficiency and environmental responsibility.
Conclusion: The Future of Wafer Cleaning Technology
The ozone cleaning process offers a transformative approach to wafer cleaning, addressing the high costs, safety risks, and environmental concerns of traditional methods like Piranha processing. By adopting this innovative technology, semiconductor manufacturers can achieve safer, more sustainable, and cost-effective operations.
The time to modernize is now. Semiconductor manufacturers can achieve unmatched efficiency, safety, and sustainability with ozone cleaning. Contact Modutek for a free consultation and transform your wafer processing operations.
