Modutek’s DR SERIES Quick Dump Rinser
WAFER DUMP RINSER:

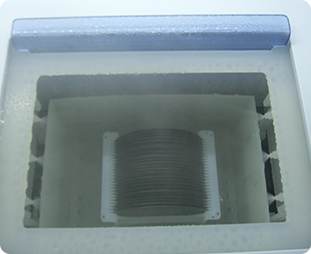

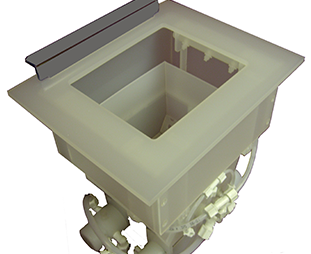

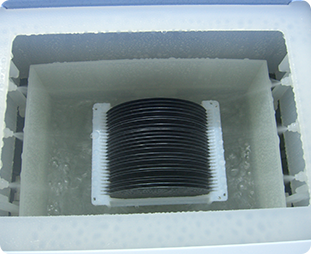

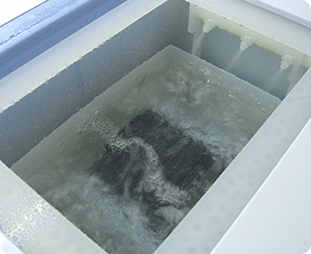

The DR Series quick dump rinser is Modutek’s most efficient process rinsing module. State-of-the-art engineering has eliminated particle entrapment, minimized rinsing time, reduced D.I. water consumption, and shortened dump time.
QFa Series Quartz Tanks/Baths:
WAFER DUMP RINSER:
The DR Series quick dump rinser is Modutek’s most efficient process rinsing module. State-of-the-art engineering has eliminated particle entrapment, minimized rinsing time, reduced D.I. water consumption, and shortened dump time.
Benefits
- Contoured tank design to save water on each dump cycle
- Custom sizes available for all applications
- Drop-in design for easy installation for all wet stations
- Available in natural polypro and PVDF material
Features

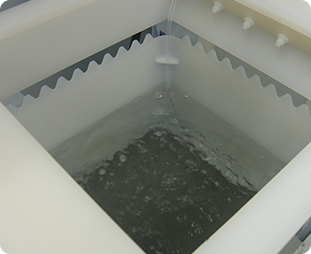

- 360° overflow weir
- Large one-piece designed dump door

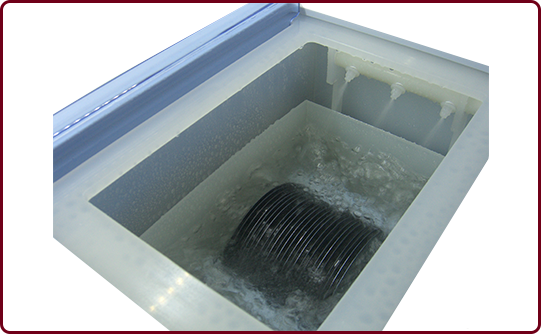

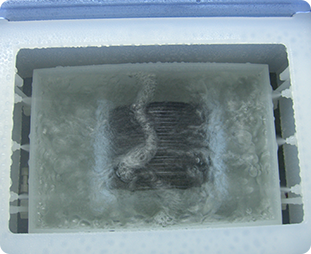

- Top spray and bottom N2 agitation
- Low misting top spray nozzles to eliminate overspray
Specifications
- Operating temperature range: Ambient (Optional PVDF: 50 – 80º C)
- One year warranty
Facility Requirement
- Electrical: 105 – 125 VAC, 1 Ø, 24 amps 50 / 60 Hz (for controller use only)
- D.I. water: 25 psi (dynamic)
- N2 50 – 60 psi (max.) controller, 10 – 15 psi N2 bubbler all models
Construction Materials
- Rinse tank: Natural polypropylene
- D.I. manifold tubing and spray nozzles: Natural polypropylene
- D.I. water valves and N2 valves: Natural polypropylene (fittings: polypropylene)
- Cover: Clear PVC
- Dump door: Natural polypropylene (no gaskets or O-ring seals used)
Options
- Reclaim system
- Teflon® spray nozzles
- Teflon® D.I. water manifold
- Teflon® D.I water valves
- Process cover modification
- PVDF process tank
- Teflon® N2 valves
Benefits
- Contoured tank design to save water on each dump cycle
- Custom sizes available for all applications
- Drop-in design for easy installation for all wet stations
- Available in natural polypro and PVDF material
Features
- 360° overflow weir
- Large one-piece designed dump door
- Top spray and bottom N2 agitation
- Low misting top spray nozzles to eliminate overspray
Specifications
- Operating temperature range: Ambient (Optional PVDF: 50 – 80º C)
- One year warranty
Facility Requirement
- Electrical: 105 – 125 VAC, 1 Ø, 24 amps 50 / 60 Hz (for controller use only)
- D.I. water: 25 psi (dynamic)
- N2 50 – 60 psi (max.) controller, 10 – 15 psi N2 bubbler all models
Construction Materials
- Rinse tank: Natural polypropylene
- D.I. manifold tubing and spray nozzles: Natural polypropylene
- D.I. water valves and N2 valves: Natural polypropylene (fittings: polypropylene)
- Cover: Clear PVC
- Dump door: Natural polypropylene (no gaskets or O-ring seals used)
Specifications
- Operating temperature range: Ambient (Optional PVDF: 50 – 80º C)
- One year warranty
Facility Requirement
- Electrical: 105 – 125 VAC, 1 Ø, 24 amps 50 / 60 Hz (for controller use only)
- D.I. water: 25 psi (dynamic)
- N2 50 – 60 psi (max.) controller, 10 – 15 psi N2 bubbler all models
Construction Materials
- Rinse tank: Natural polypropylene
- D.I. manifold tubing and spray nozzles: Natural polypropylene
- D.I. water valves and N2 valves: Natural polypropylene (fittings: polypropylene)
- Cover: Clear PVC
- Dump door: Natural polypropylene (no gaskets or O-ring seals used)
Options
- Reclaim system
- Teflon® spray nozzles
- Teflon® D.I. water manifold
- Teflon® D.I water valves
- Process cover modification
- PVDF process tank
- Teflon® N2 valves
Benefits
Benefits
- Contoured tank design to save water on each dump cycle
- Custom sizes available for all applications
- Drop-in design for easy installation for all wet stations
- Available in natural polypro and PVDF material
Features
Features
- 360° overflow weir
- Large one-piece designed dump door
- Top spray and bottom N2 agitation
- Low misting top spray nozzles to eliminate overspray
Specifications
Specifications
- Operating temperature range: Ambient (Optional PVDF: 50 – 80º C)
- One year warranty
Facility Requirement
- Electrical: 105 – 125 VAC, 1 Ø, 24 amps 50 / 60 Hz (for controller use only)
- D.I. water: 25 psi (dynamic)
- N2 50 – 60 psi (max.) controller, 10 – 15 psi N2 bubbler all models
Construction Materials
- Rinse tank: Natural polypropylene
- D.I. manifold tubing and spray nozzles: Natural polypropylene
- D.I. water valves and N2 valves: Natural polypropylene (fittings: polypropylene)
- Cover: Clear PVC
- Dump door: Natural polypropylene (no gaskets or O-ring seals used)
Options
Options
- Reclaim system
- Teflon® spray nozzles
- Teflon® D.I. water manifold
- Teflon® D.I water valves
- Process cover modification
- PVDF process tank
- Teflon® N2 valves
Quick Dump Rinser Model Matrix:
Model nomenclature: model code, number of cassettes and size of cassettes. eg: DR16 ( 1 each – 6″ cassette )
Contact us if you need more information about using our Quick Dump Rinsers for your process.
